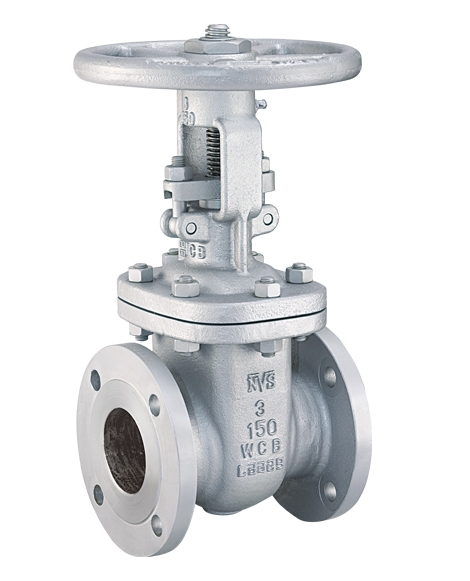

Cast Steel Gate Valve
GF
Cast Steel Gate Valve

Sizes:

1 - 1/2" ~ 36"

Nominal Ratings:

  • ASME: 150# ~ 1500#
  • JIS: 10K ~ 63K
  • DIN: PN10 ~ PN160
  • API 600 Design
  • Outside Screw and Yoke
  • Bolted Bonnet (Pressure Seal Bonnet for 1500 Lbs)
  • Flexible Wedge, Fully Guided
  • Welded Seat Ring
  • Rising Stem and Non-Rising Hand Wheel
  • Available with Gear Operator
  • Available with Actuator
  • Available with By-Pass Valve
  • A216-WCB
  • A217-WC6
  • A352-LCB
  • Other Materials upon Customer's Request
  • Flanged Ends
  • Butt Welding Ends
  • ASME: 150# ~ 1500#
  • JIS: 10K ~ 63K
  • DIN: PN10 ~ PN160
  • 1 - 1/2” ~ 36”
