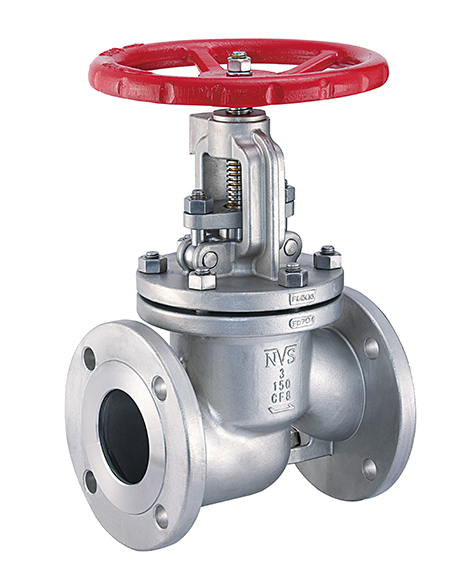

Cast Stainless Steel Globe Valve
|
Design Description:
- API 603 DESIGN FOR 150 LBS & 300 LBS
- API 600 DESIGN FOR 600 – 1500 LBS
- OUTSIDE SCREW AND YOKE
- BOLTED BONNET (PRESSURE SEAL BONNET FOR 1500
LBS)
- YOKE INTEGRAL WITH BONNET
- LOOSE DISC
- INTEGRAL SEAT AND BACK SEAT FOR 150 LBS &
300 LBS
- RISING STEM AND HANDWHEEL (IMPACT HAMMER HANDWHEEL
FOR 10" & OVER.)
- AVAILABLE WITH GEAR OPERATOR
- AVAILABLE WITH ACTUATOR
Material:
- A351-CF8
- A351-CF8M
- A351-CF3M
Ends:
- FLANGED ENDS
- BUTTWELDING ENDS
Ratings:
Size:
|
